Key Benefits

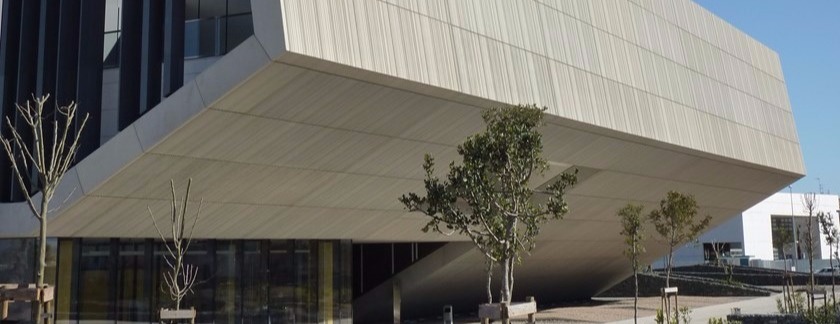

• Fair finish concrete surface
• Highly wear resistant,
• Free from delamination risks,
• No need for secondary putty repairs of concreted surface
• Resistant to most aggressive environments, including chemicals
• Higher water resistance, boiling waterproof
• Durable and Hard surface
• Resistance to temperature variation: through a range of -40°C to +50°C (-40°F to +122°F), comes in a variety of thicknesses and sizes.


What does our promise of Efficiency mean to you

• Products that improve your cost, material and energy efficiency
• Reliable and timely deliveries
• Local knowledge, support and service
• Solutions for every application
• Proven and documented technical data and environmental statements

Properties

• Waterproof, dimensionally accurate & stable.
• Strong and light
• Meets EUTR standards,
• Meets European E1 formaldehyde emission requirements (EN 120:1992) and also California ARB regulation P2

Veneers

• 100% natural whole piece or spliced Birch Veneers of 1.4mm thickness throughout the plywood without any gaps or open splits or joints.

Bonding

• Phenolic resin cross-bonded weather resistant gluing according to EN 314-2 class 3 exterior.

Availability options:

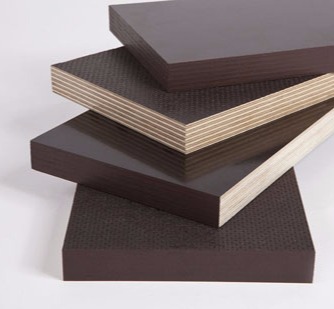

Birchply™ Film face Birch Plywood is made in a range of thickness from 9mm, 12mm, 15mm * 18mm

However, the commonly available Ex-Stock thickness is

9mm x 7 ply in 120 gsm
12mm x 9 ply in 120 GSM& 220 GSM
18mm x 13 ply in 120 GSM& 220 GSM
21mm x 15 ply in 120 GSM

Technical Specifications

Thickness, mm	9, 12, 18, 21
Surface type	Smooth (F/F)
Water resistance	Boiling Water Proof
Density, kg/m3	640-700
Moisture content, %	5-14
Produced under STO 00255177-002-2014 Film faced birch plywood.

Strength Specifications

Dimension		Value
Ultimate static bending strength, min MPa	along the grain of face veneers	60
	against the grain of face veneers	30
Static bending elasticity modulus, min MPa	along the grain	6000
	across the grain	3000

Parameters	Values
Density kg/cubic meter	640-700
Moisture Content %	8-10
Minimum Ultimate strength MPa
Shear along the glue layer	1.5
Static bending along the grain (Outer layer)	25
Tension along the grain	30
Minimum elastic module, MPa	7000

What does our promise of Efficiency mean to you

• Products that improve your cost, material and energy efficiency
• Reliable and timely deliveries
• Local knowledge, support and service
• Solutions for every formwork application
• Proven and documented technical data and environmental statements

Effect of humidity and moisture

• Wood veneer is a living material and is subject to moisture movement according to surrounding conditions, which affects the flatness of panels. It is important to condition the panels to reach a moisture content near to the equilibrium of their permanent environment.

• Like other wood-based panel products, Birch Plywood is also hygroscopic and its dimensions change in response to a change in humidity. A change of 1% in moisture content typically increases or decreases the length, width and thickness by 1% in dimensions and thickness. It is therefore desired that the edges are sealed with a suitable acrylic paint to prevent and/or control ingress of moisture and humidity and consequent swell in thickness and expansion in dimensions.

• The recommended stocking conditions are 20°C and a RH of air of about 60%.

Storage conditions:

When first exposed to the prevailing weather conditions at Site and during the early uses of the boards, there is likely to be some localised swelling of the wood veneer caused by moisture pickup, which may leave impressions in the face of the concrete. To prevent this:

• Store the panels in dry conditions, flat on a level surface, off the ground and direct sunlight, preferably indoors or under the shed.

• Panels should be store horizontally on a firm base with enough bearers to prevent sagging.

• The stacks should be covered k to protect top and edges from moisture penetration as fluctuations in temperature and humidity may cause panels to distort.

Reuses

• Typical number of reuses is likely to be in the range of  15-20 times. However, this will vary according to many different factors including good site practice, the required concrete finish, the amount of care taken when compacting the concrete, handling and storage of panels, type and quality of release agent used on the panels before concreting.

• The number of times the plywood can be reused is only intended as an approximate guide. It does not imply any form of warranty. The actual number of reuses will depend on several factors other than the plywood.

Disclaimer:

Eximcorp India Pvt Ltd, does not assume any responsibility or admits any liability whatsoever for the number of uses or re-uses or repetitions or damages to the sheets or concrete surface quality for reasons not attributable to manufacturing defects or for several other factors affecting the performance of the product. In the event of any occasional delamination in excess of the AQL (Acceptance Quality Level) of 3% established by the trade practices and also so declared by the seller hereby, the replacement of delaminated sheets or the surface area so observed shall me made expeditiously by the Seller or refund of value thereof as soon as possible without any further or other consequential or other losses.
